Description

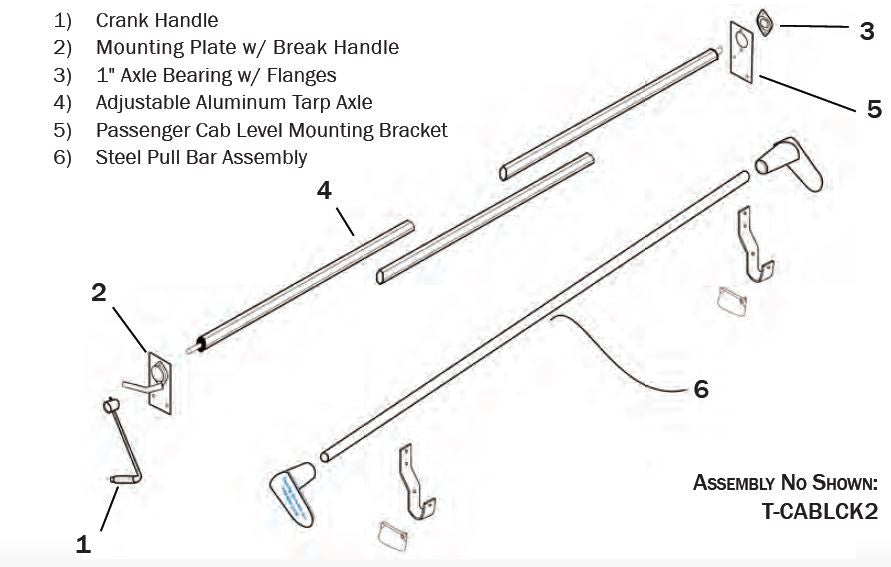

pull tarp Crank N' Pull Manual Tarp SystemNOTE: Assembly #6, often referred to as the steel pull bar assembly, is an optional add on. If you do decide to purchase the assembly, please note that shipping will be considerably higher due to the pullbar being over 95". For accurate shipping quotes, please call the office before ordering. Crank N Pull Manual Tarp System for Dump Trucks The Crank N Pull Manual Tarp System is a rugged, dependable dump truck or trailer manual tarp system built for
NOTE: Assembly #6, often referred to as the steel pull bar assembly, is an optional add-on. If you do decide to purchase the assembly, please note that shipping will be considerably higher due to the pullbar being over 95". For accurate shipping quotes, please call the office before ordering.
Crank N’ Pull Manual Tarp System for Dump Trucks
The Crank N’ Pull Manual Tarp System is a rugged, dependable dump truck or trailer manual tarp system built for operators who want simplicity, durability, and long-term reliability. This hand crank tarp system provides consistent load coverage without the complexity or maintenance requirements of electric tarp systems.
Designed specifically for dump trucks or trailers, the Crank N’ Pull system allows operators to manually deploy and retract their tarp with smooth, controlled operation. Its straightforward design makes it an excellent choice for owner-operators, fleets, and municipalities looking for a manual tarp system for dump trucks or trailers that performs day in and day out.
Built Tough for Demanding Applications
This manual tarp system is constructed using heavy-duty components engineered to handle harsh jobsite conditions. From construction and demolition to aggregate and asphalt hauling, the Crank N’ Pull system is built to stand up to daily use while maintaining smooth functionality.
With fewer moving parts than electric systems, this crank tarp system minimizes downtime and reduces long-term maintenance costs - making it a smart, cost-effective solution for hardworking trucks.
Smooth Hand Crank Operation
The integrated hand crank tarp mechanism gives drivers full control over tarp deployment and retraction. Whether covering a full load or rolling the tarp back after unloading, the Crank N’ Pull system delivers consistent, reliable performance without relying on motors, wiring, or switches.
This manual operation ensures dependable functionality in all weather conditions and job environments.
Key Features & Benefits
-
Heavy-duty spring-loaded hand crank with break-away handle
-
Smooth, controlled manual tarp deployment
-
Steel powder-coated mounting brackets with sealed bearings
-
Fewer components to maintain compared to electric tarp systems
-
Ideal for construction, hauling, and aggregate applications
-
Helps reduce material loss and maintain DOT load compliance
-
Cost-effective alternative to electric dump truck tarp systems
Helpful Information
- This system can mount on the front of any length box
- Fits box widths up to 8' 6" wide
- 103" aluminum extruded tarp axle (1-1/2" in diameter). Can be cut to whatever width you need
- NOTE: Tarps ordered for use with this system should measure at least 4" less than the width of your mounted axle
Manual Tarp System Components
- (1) Cab Level Tarp Axle
- (1) 1" Axle Bearing with Flange 3/4" Hole
- (1) Driver Side Cab Level Bracket and Passenger Side Cab Level Bracket
- (1) 3/8" Derby Rope
- (1) Cab Level Crank Handle
- (1) Steel Sprocket
- (2) 15" Bungee Strap with J Hook
- (4) 3 1/2" J Hooks (Dia: 11.8mm)
Hardware
- (7) 1/4" x 1" Hex Head Bolt
- (5) .8ID x T.2mm Washer
- (4) 3/8"-16 x 1" Hex Head Bolts, 3/8" Nylon Nuts, and 3/8" Lock Washers
- (1) 1/4"-20 x 2" Hex Head Bolt (Half Thread)
- (1) 1/4" Nut
- (8) 1/4" x 1" Philips Head Self-Tapping Screw
Installing Pull Rope
- Attach the free end of the Pull Rope to the center of the Rear Pull Bar, through the grommet, with the cut end facing upwards. Cut the rope to the desired length, and tie a knot.
- Mount two J-hooks, with the supplied self-tapping bolts, opposing each other near the rear of the dump (typically on the gate) to secure the Pull Rope in the covered position.
- Mount two J-hooks with the supplied self-tapping bolts opposing each other near the front of the dump to secure the Pull Rope in the uncovered position.
